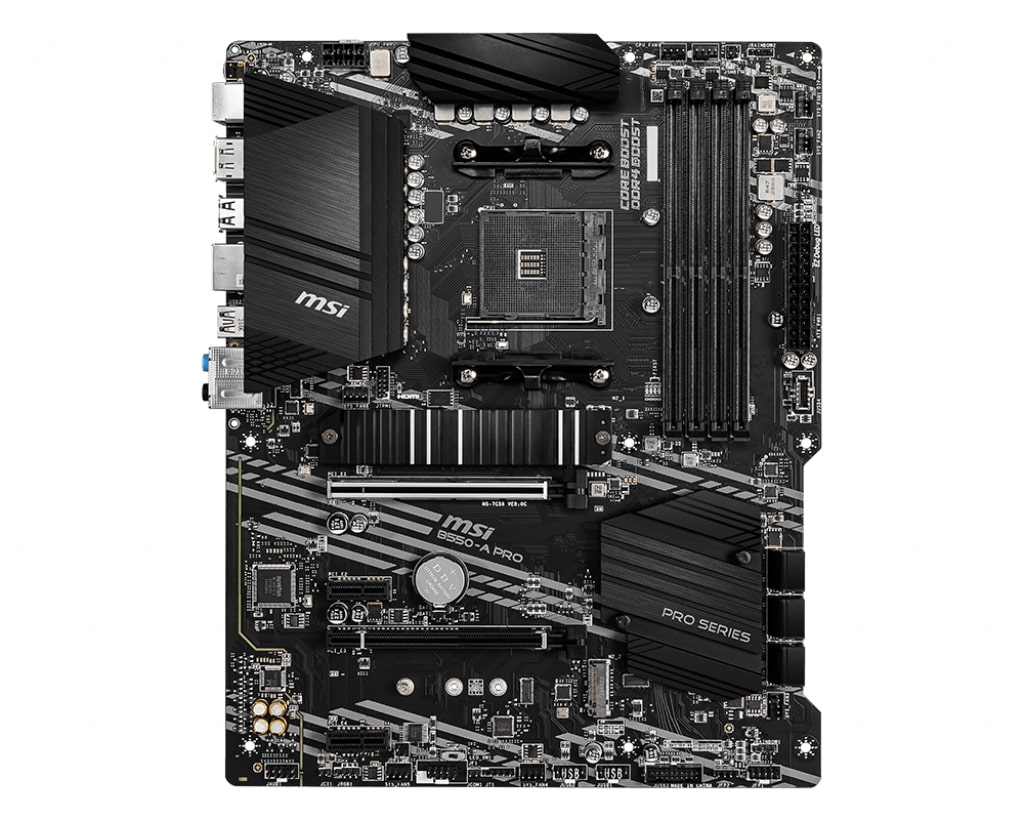

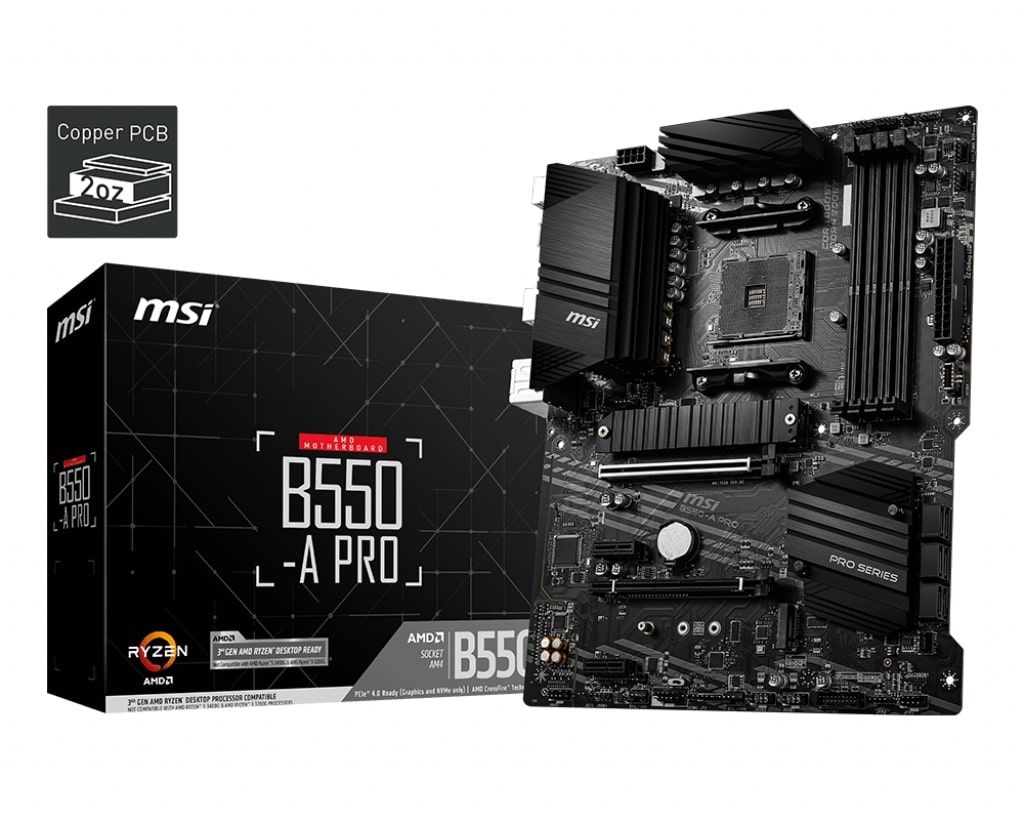

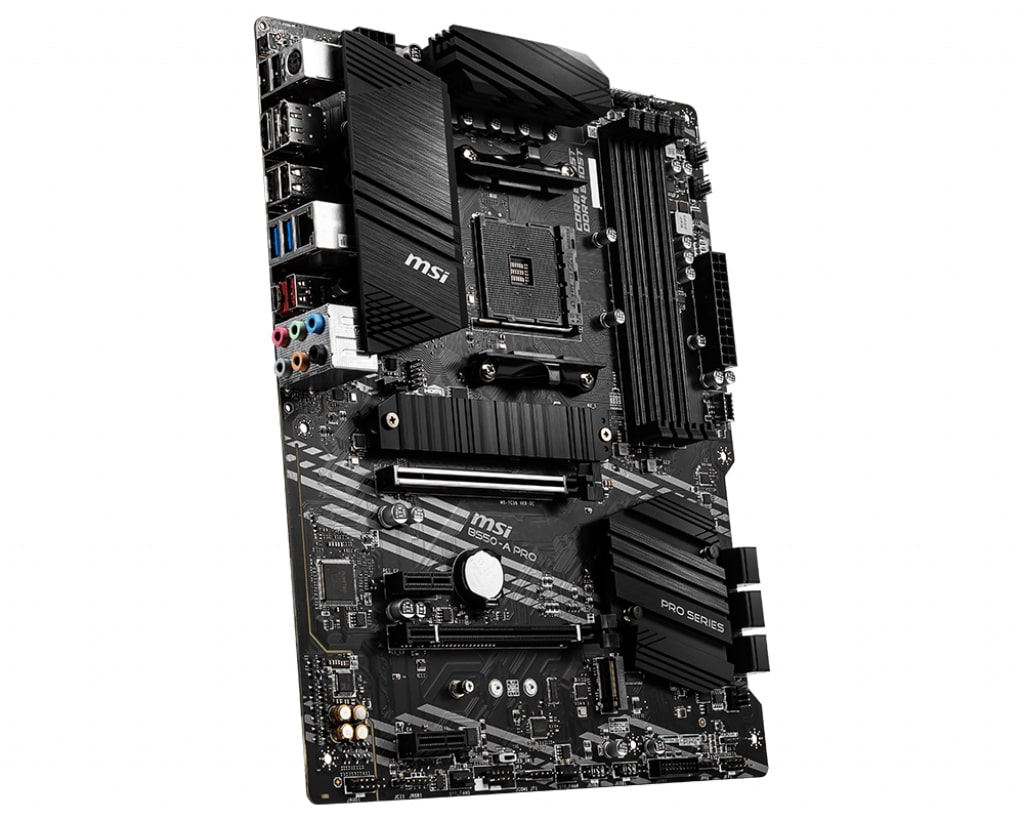

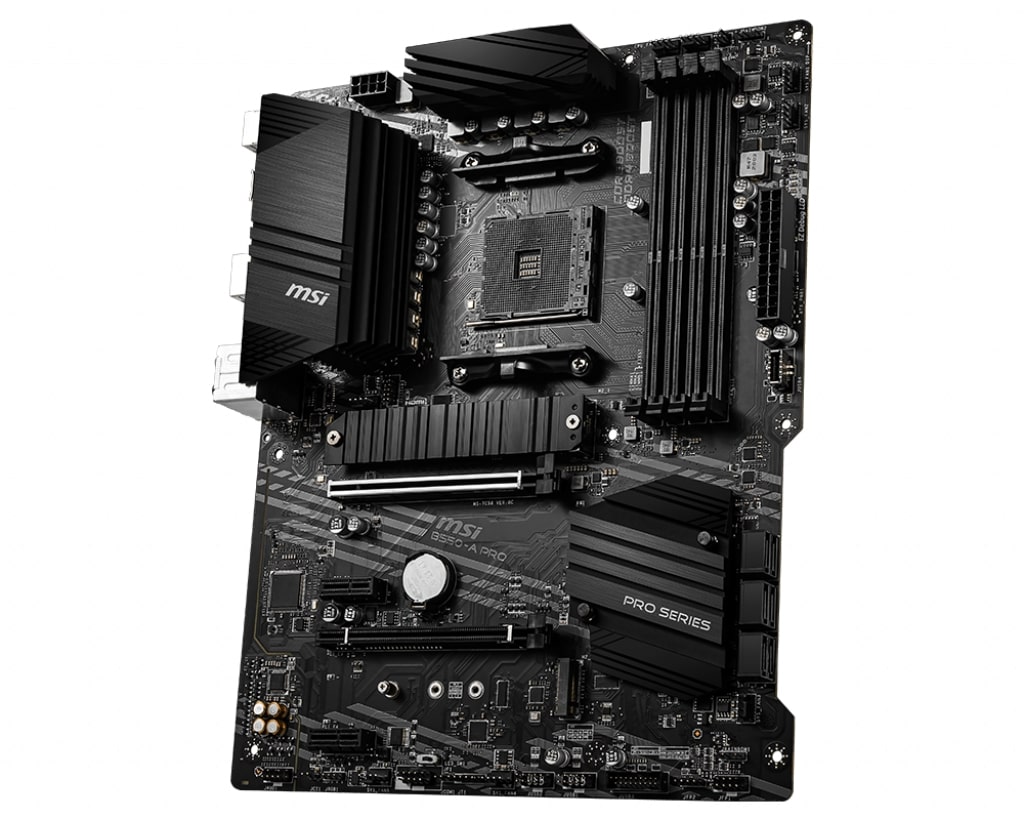

MSI B550-A PRO

Chipset: AMD B550 Rozměrový formát: Formát ATX (305 mm x 244 mm) Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update Patice procesoru: AM4 Pozice na paměti: 4x DDR4 Podpora pro paměti: *Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC *Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual channel memory architecture *Supports non-ECC UDIMM memory *Supports ECC UDIMM memory (non-ECC mode) *Supports un-buffered memory Grafické výstupy: na základě procesoru *1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz *1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Multi GPU: *Supports 2-Way AMD CrossFire™ Technology Zvuková karta: *Realtek® ALC892 Codec Síťová karta: *1x Realtek® 8111H Gigabit LAN controller RAID řadič: *Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices *Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Rozšiřující sloty: *1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) *1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed *2x PCIe 3.0 x1 slots SATA: *6x SATA 6Gb/s ports M.2: *2x M.2 slots (Key M) USB: *zadní USB porty ( celkem 8 ) *4x USB 2.0 ports *1x USB 3.2 Gen 2 10Gbps Type-C port *1x USB 3.2 Gen 2 10Gbps port *2x USB 3.2 Gen 1 5Gbps Type-A ports *přední USB porty ( celkem 7 ) *1x USB 3.2 Gen 1 5Gbps Type-C port *2x USB 3.2 Gen 1 5Gbps ports *4x USB 2.0 ports Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *6x SATA 6Gb/s connectors *2x M.2 slots (M-Key) *1x USB 3.2 Gen 1 5Gbps Type-C port *1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin water-pump fan connector *6x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Chassis Intrusion connector *1x 4-pin RGB LED connector *2x 3-pin RAINBOW LED connectors *1x TPM module connector *1x Clear CMOS jumper Externí porty: *PS/2 Keyboard / Mouse *DisplayPort *1x LAN *HD Audio Connectors *Flash BIOS Button *HDMI *4x USB 2.0 *2x USB 3.2 Gen 1 5Gbps Type-A *1x USB 3.2 Gen 2 10Gbps Type-A *1x USB 3.2 Gen 2 10Gbps Type-C Stránka výrobce: https://www.msi.com/Motherboard/B550-A-PRO

Příslušenství k tomuto produktu je…
