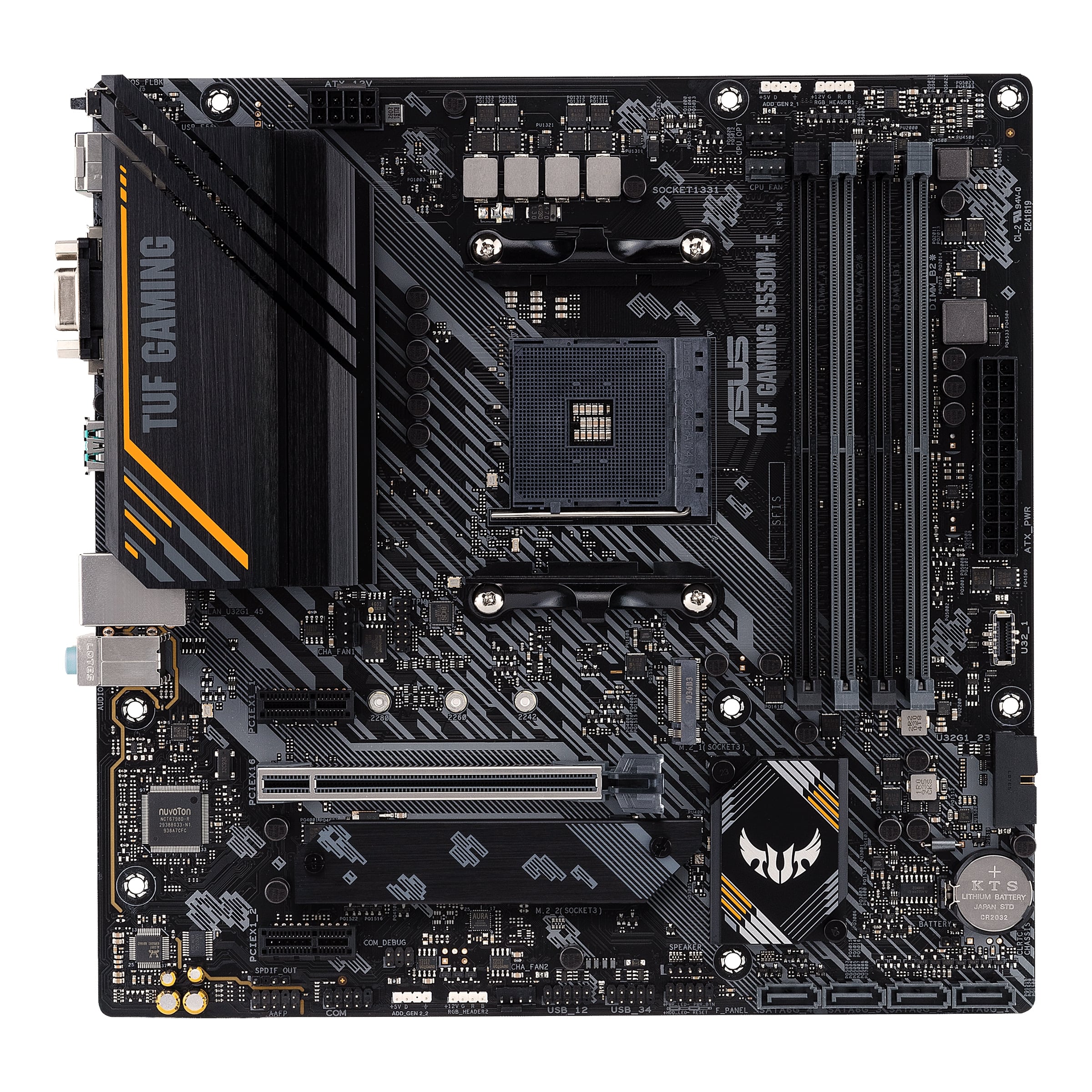

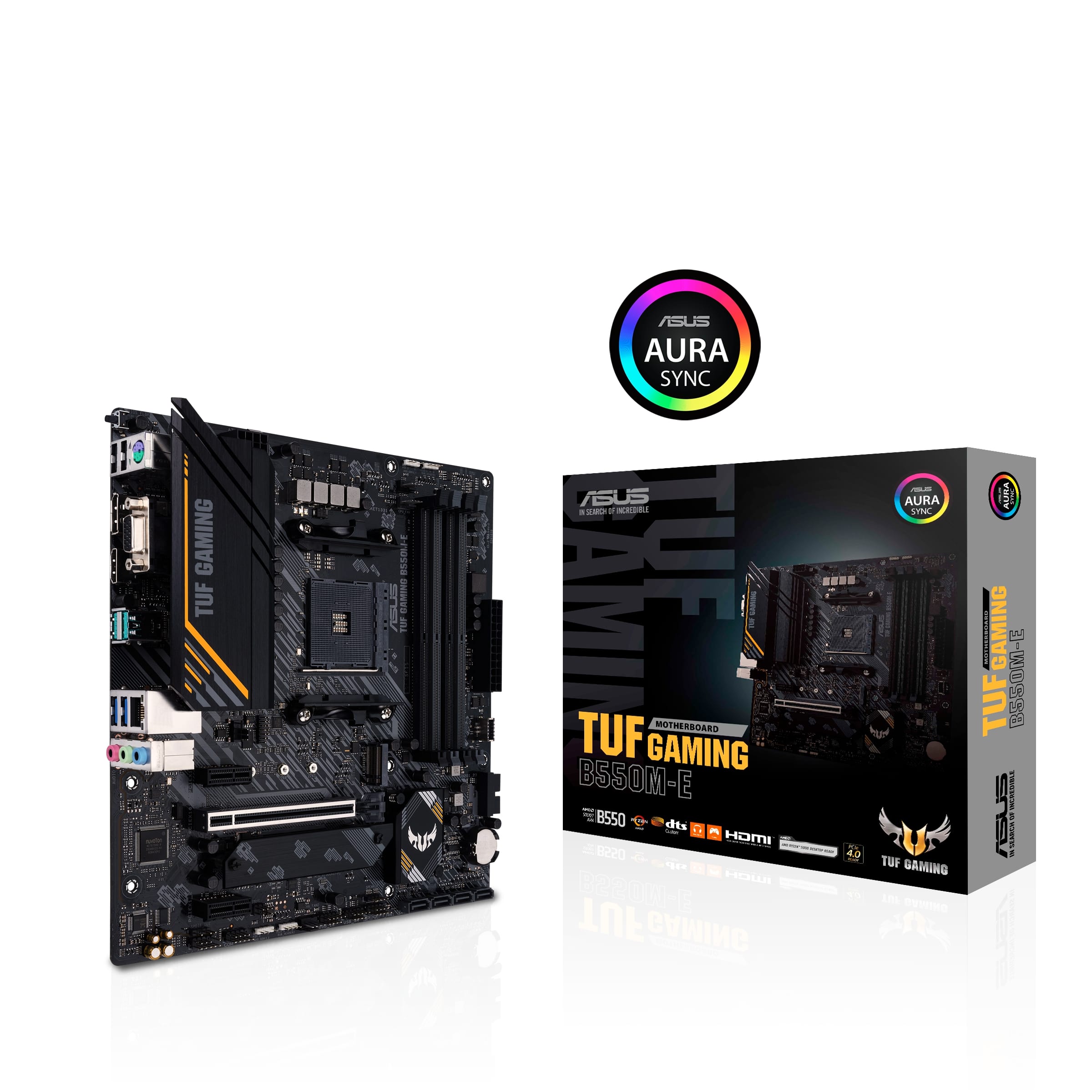

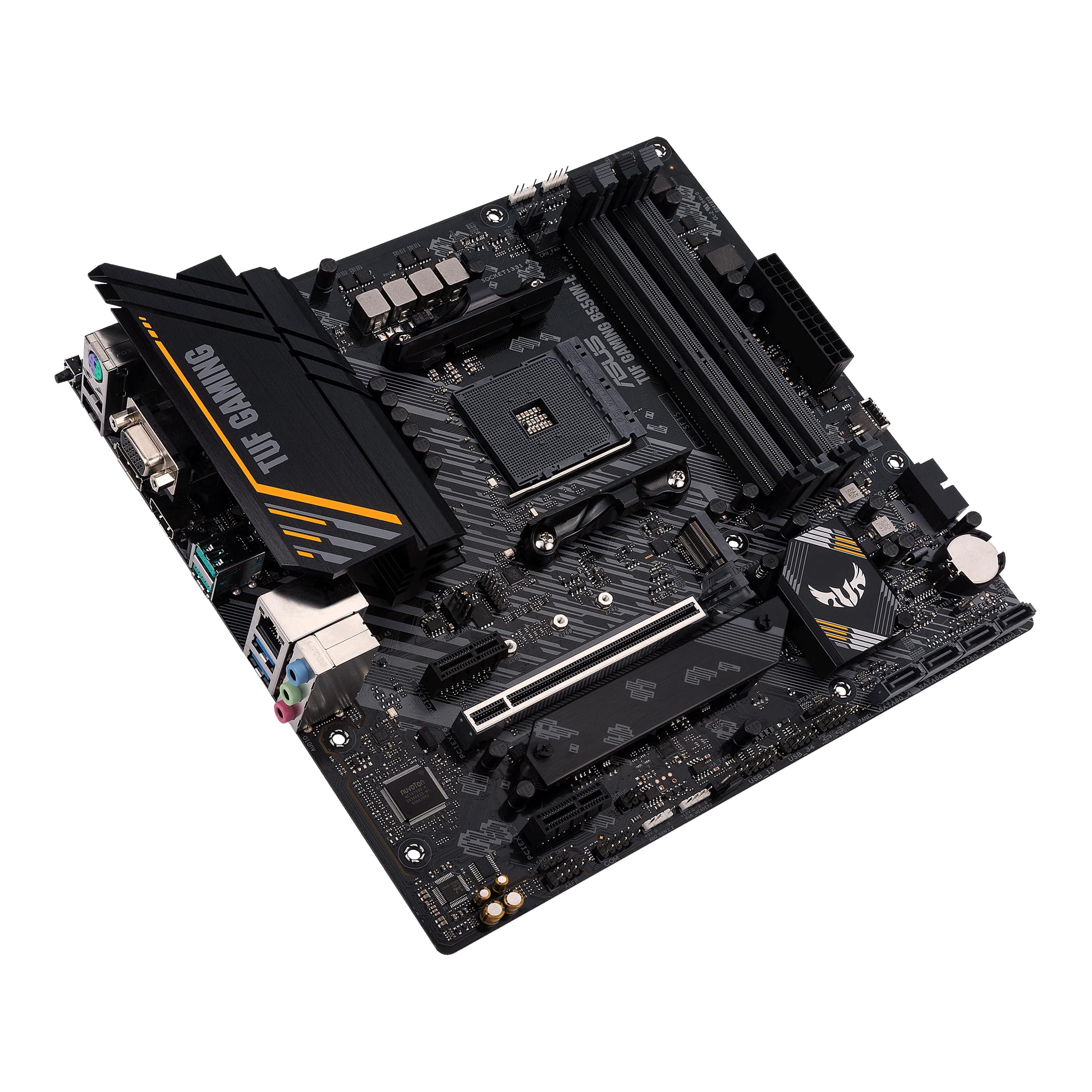

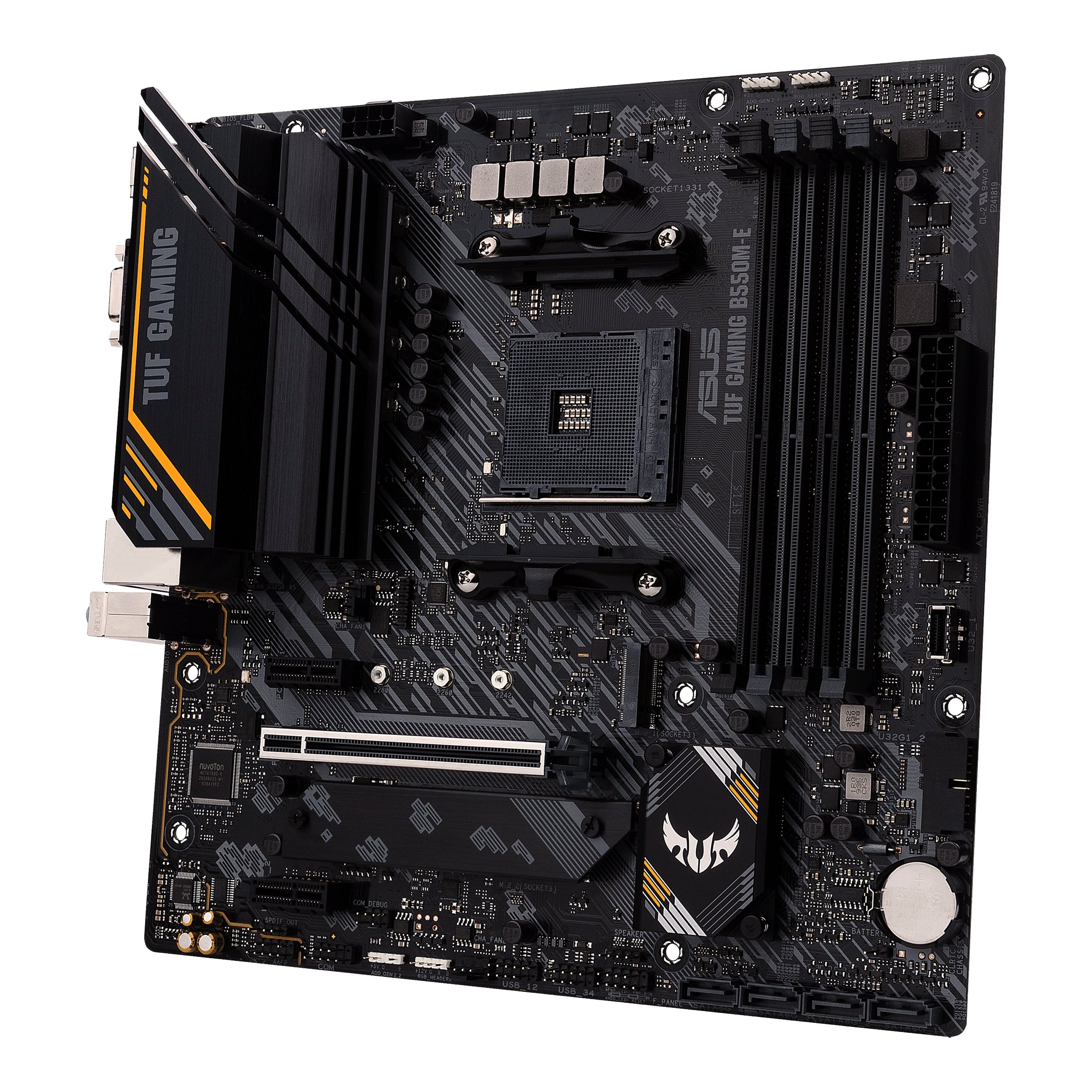

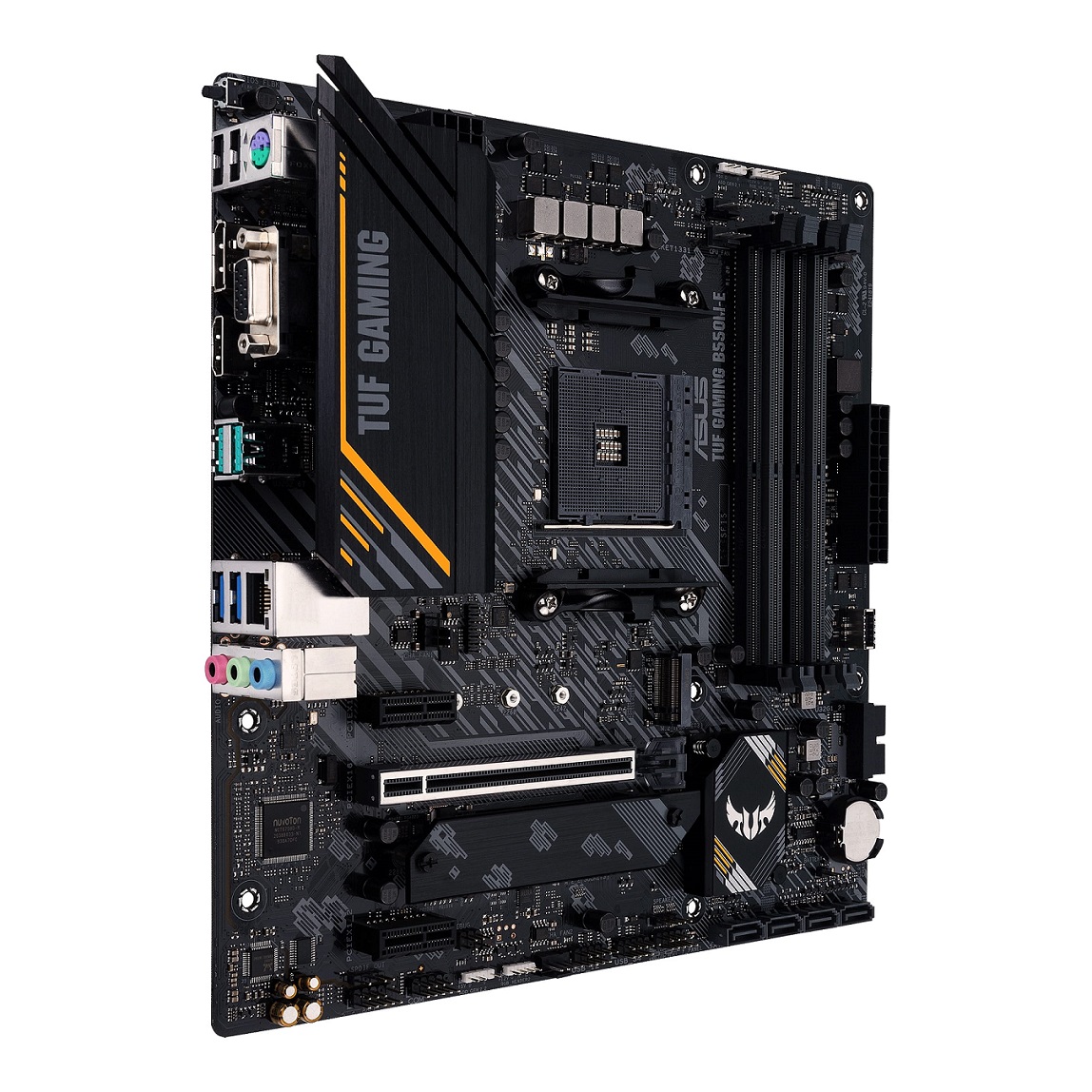

ASUS TUF GAMING B550M-E/ AM4/ mATX

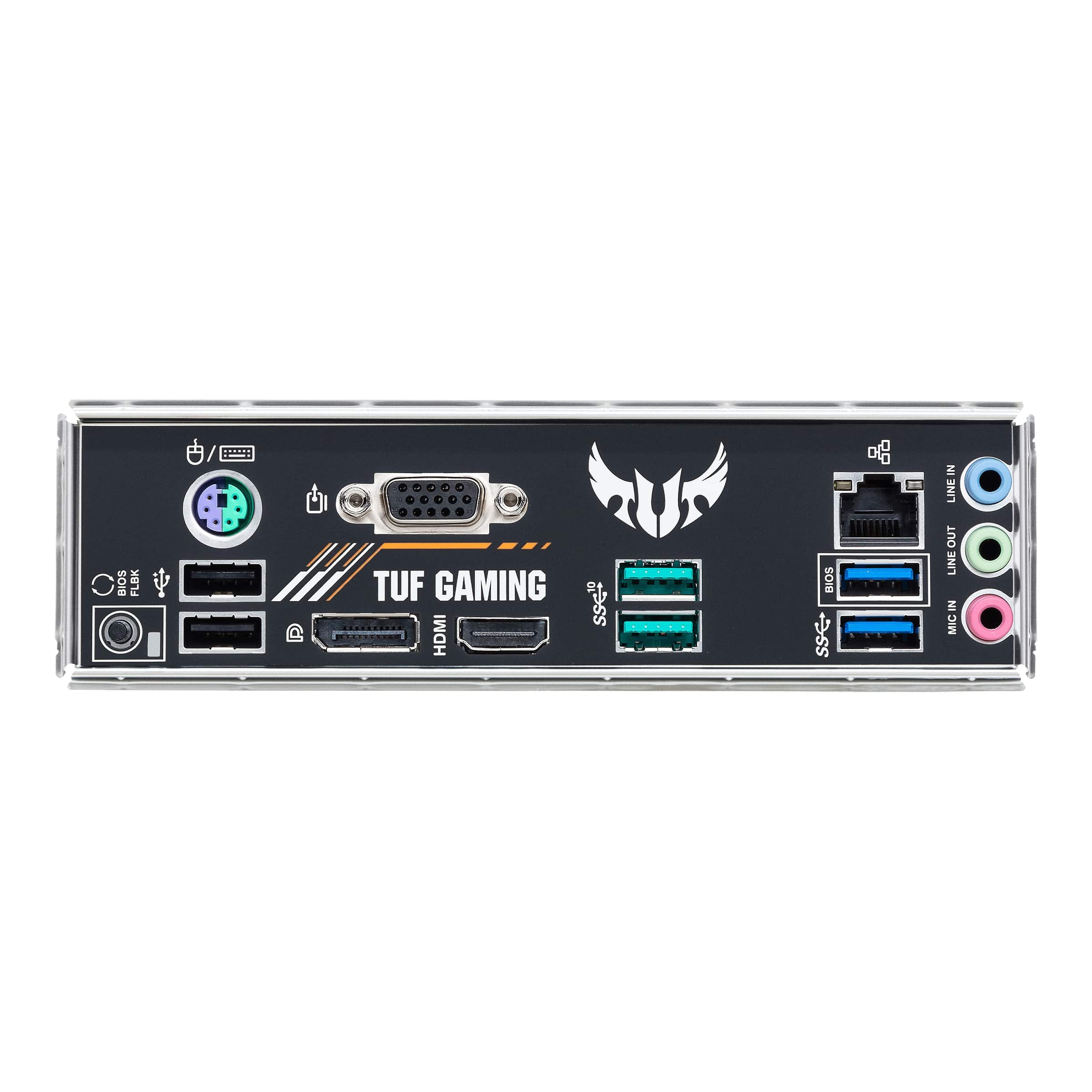

Chipset: AMD B550 Rozměrový formát: mATX Form Factor (244 mm x 244 mm) Podpora pro procesory: AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: *AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - 4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory *AMD Ryzen™ 4000 G-Series Desktop Processors - 4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4100(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *ECC memory (ECC mode) support varies by CPU Grafické výstupy: (na základě procesoru) *1x DisplayPort 1.2 *1x D-Sub *1x HDMI™ 2.1 (4K@60Hz) Zvuková karta: *Podpora: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Podporuje až 24-Bit/192 kHz playback *Audio Shielding *Premium Japanese audio capacitors *Dedicated audio PCB layers Síťová karta: *Realtek 1Gb Ethernet Rozšiřující sloty: *1x PCIe (3.0/4.0) x16 slot (supports x16 mode) *2x PCIe 3.0 x1 slots RAID řadič: 0, 1, 10 SATA: *4x SATA 6Gb/s ports M.2: *1x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe (3.0/4.0) x4 & SATA modes) *1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) USB: *zadní USB porty ( celkem 6 ) *2x USB 3.2 Gen 2 ports (2x Type-A) *2x USB 3.2 Gen 1 ports (2x Type-A) *2x USB 2.0 ports (2x Type-A) *přední USB porty ( celkem 7 ) *1x USB 3.2 Gen 1 connector (supports USB Type-C®) *2x USB 3.2 Gen 1 ports *4x USB 2.0 ports Interní porty: *1x 4-pin CPU Fan header *1x 4-pin CPU OPT Fan header *2x 4-pin Chassis Fan headers *1x 24-pin Main Power connector *1x 8-pin +12V Power connector *2x M.2 slots (Key M) *4x SATA 6Gb/s ports *1x USB 3.2 Gen 1 connector (supports USB Type-C®) *1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2x USB 2.0 headers support additional 4 USB 2.0 ports *2x AURA Addressable Gen 2 headers *2x AURA RGB headers *1x Clear CMOS header *1x COM Port header *1x Front Panel Audio header (AAFP) *1x S/PDIF Out header *1x Speaker header *1x SPI TPM header (14-1pin) *1x 10-1 pin System Panel header Externí porty: *2x USB 3.2 Gen 2 ports (2x Type-A) *2x USB 3.2 Gen 1 ports (2x Type-A) *2x USB 2.0 ports (2x Type-A) *1x DisplayPort *1x D-Sub port *1x HDMI™ port *1x Realtek 1Gb Ethernet port *3x Audio jacks *1x BIOS FlashBack™ button *1x PS/2 Keyboard/Mouse combo port Obsah balení: *2x SATA 6Gb/s cables *1x I/O Shield *1x M.2 Rubber package *1x M.2 SSD screw package *1x TUF Gaming sticker *1x Support DVD *1x TUF Certification card *1x User manual BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B550M-E https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215

Příslušenství k tomuto produktu je…
