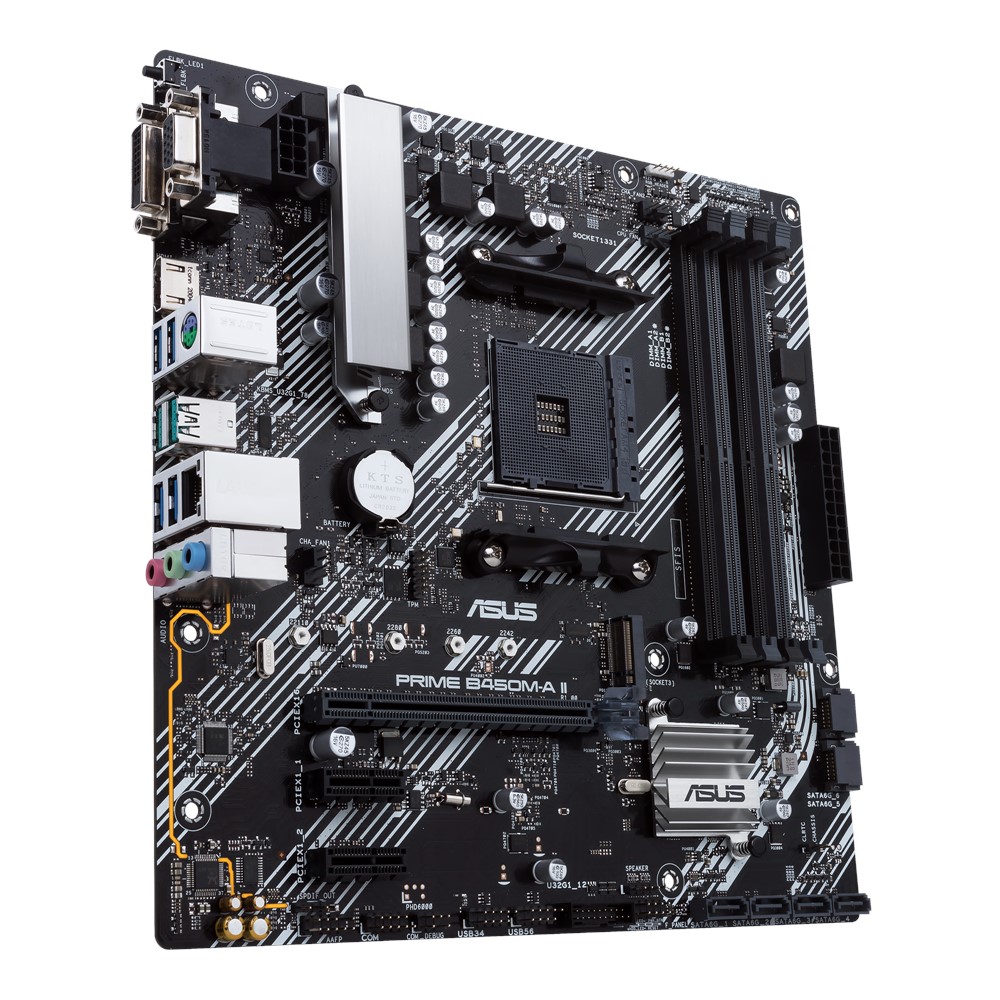

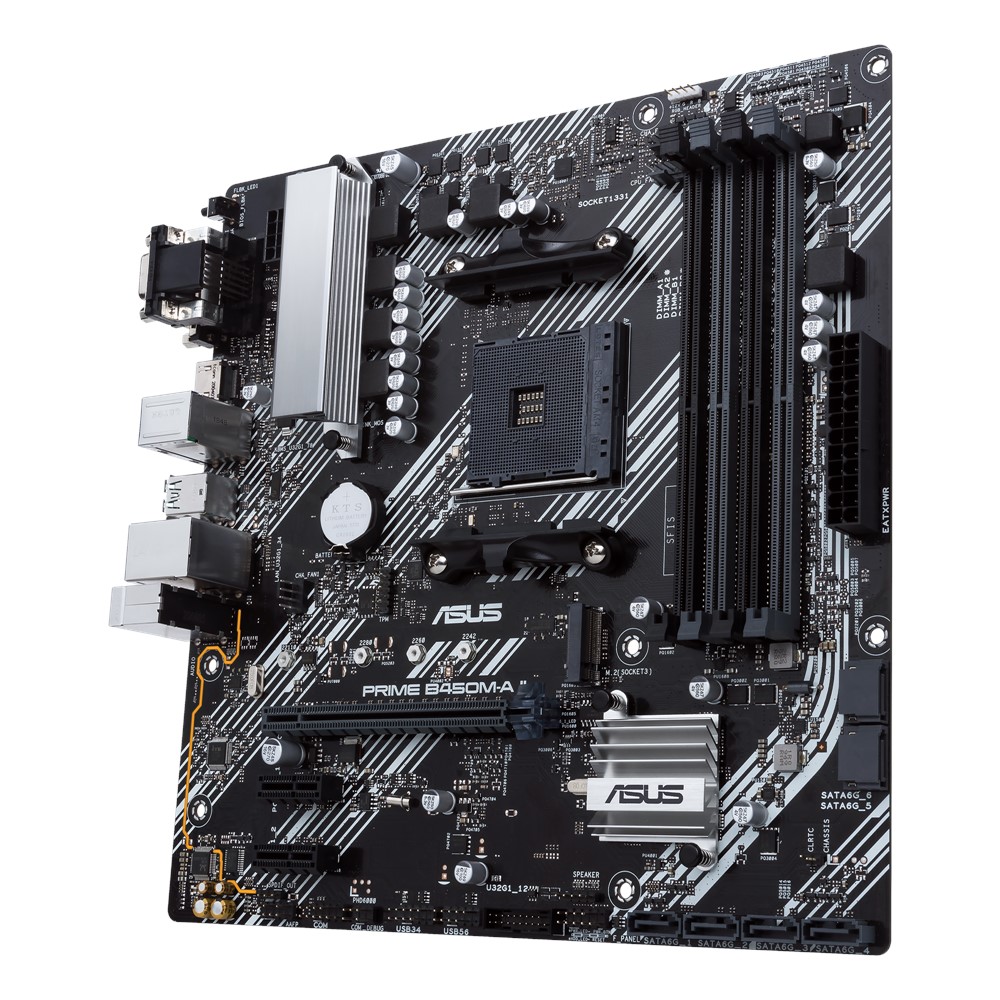

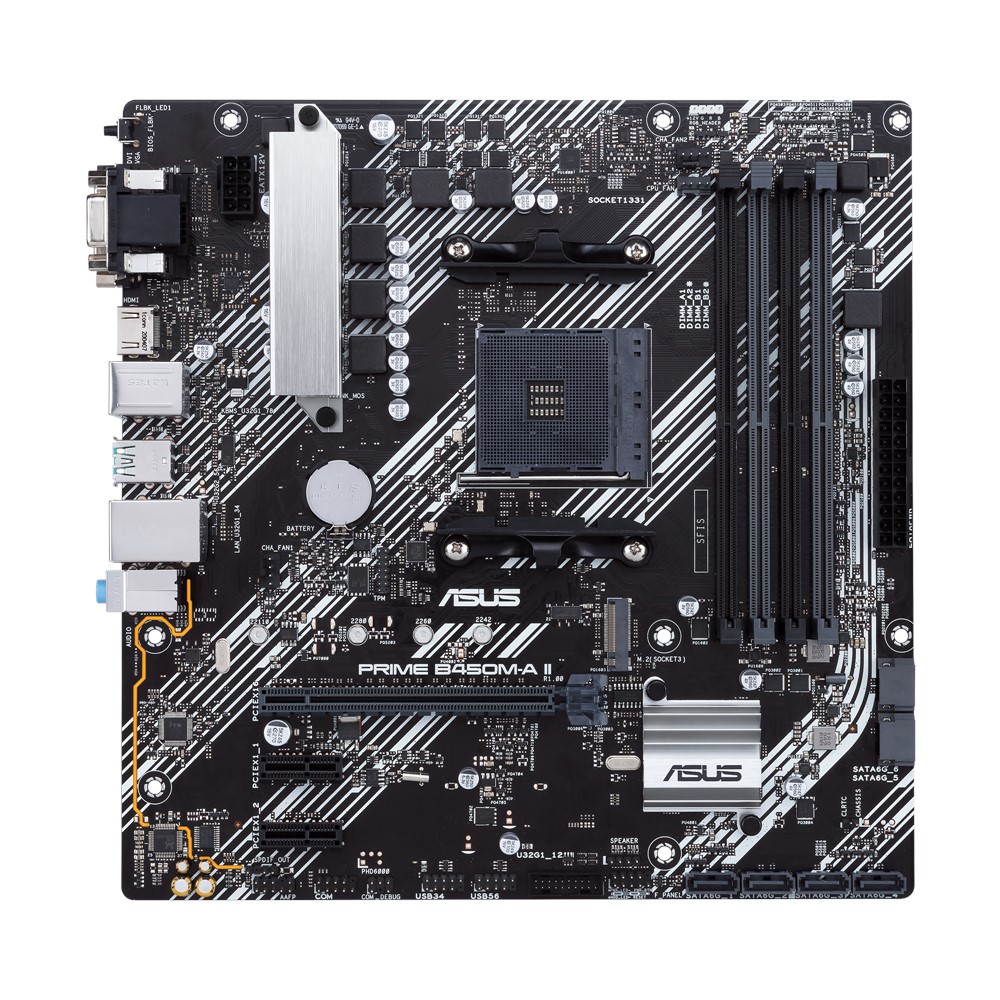

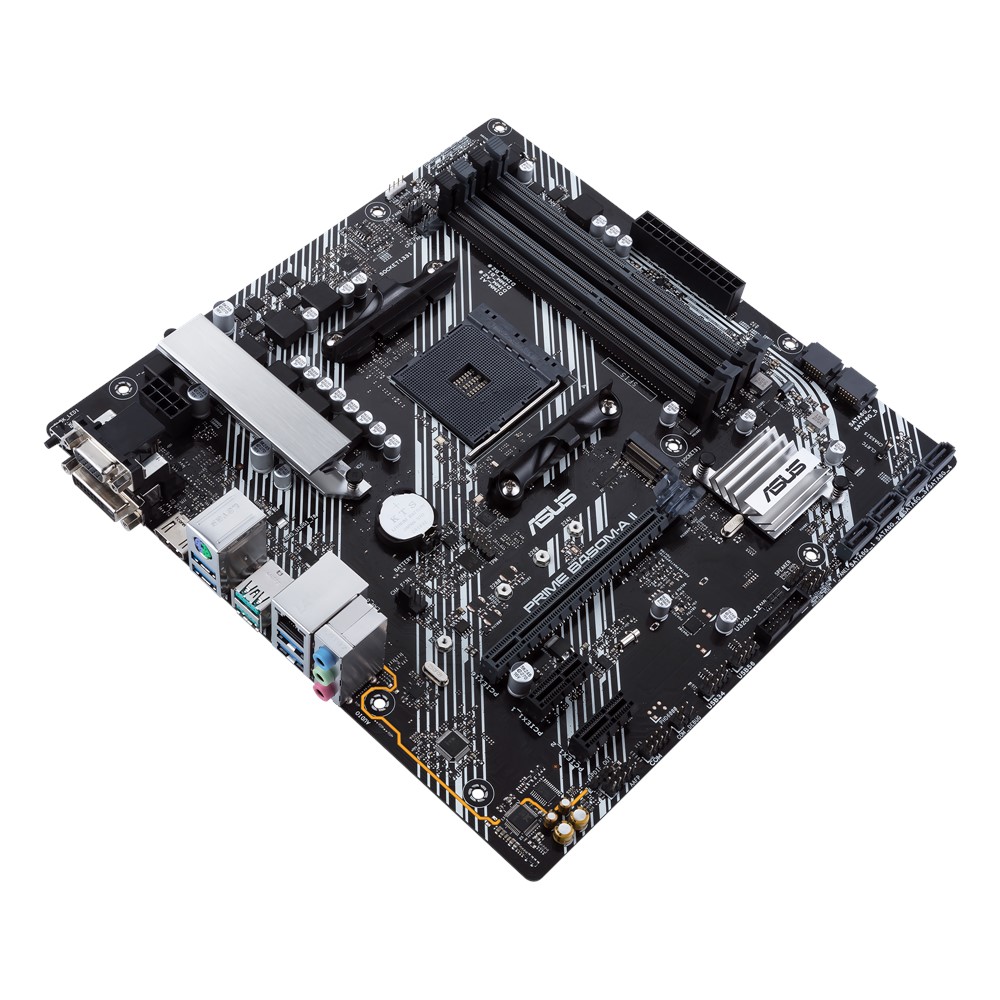

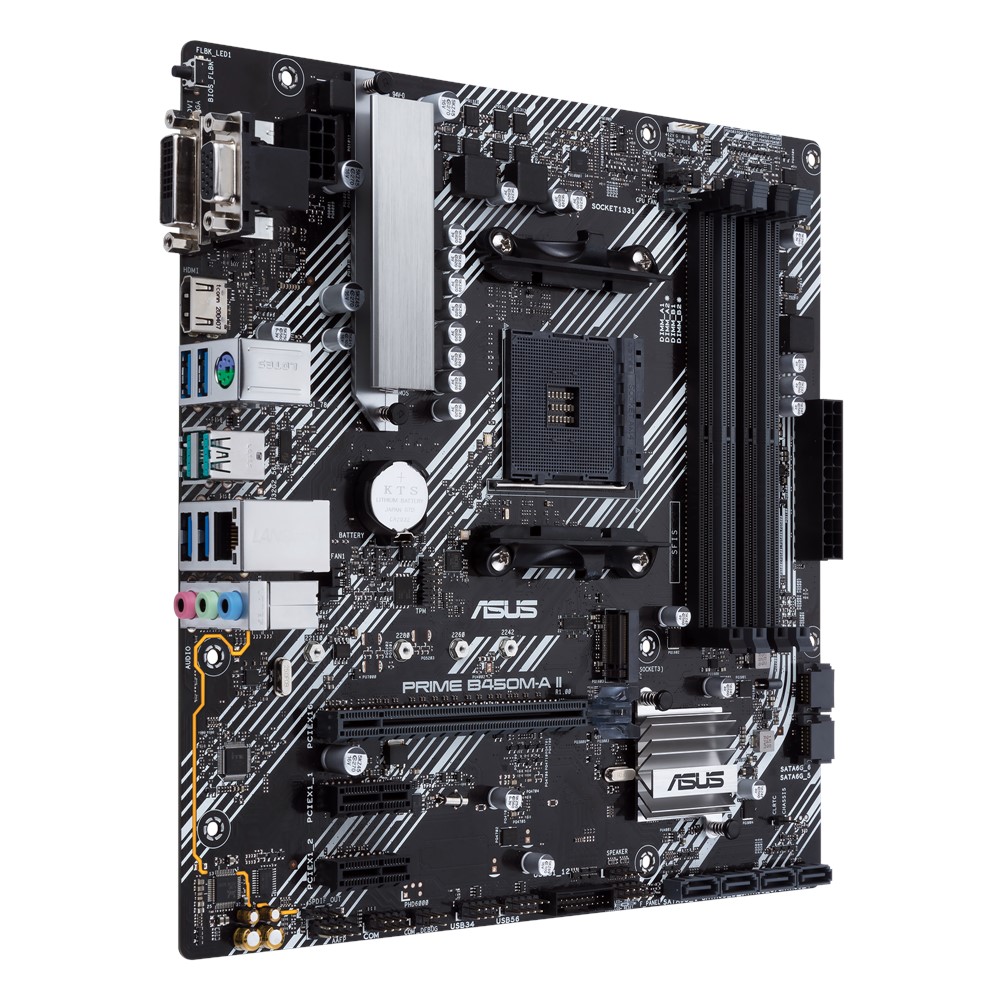

ASUS PRIME B450M-A II

Chipset: AMD B450 Rozměrový formát: mATX Form Factor (244 mm x 244 mm) Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU Grafické výstupy: *Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics) Zvuková karta: *Realtek 7.1-Channel High Definition Audio CODEC Síťová karta: *Realtek® RTL8111H Rozšiřující sloty: *3rd/2nd/1st Gen AMD Ryzen™ Processors *1x PCIe 3.0 x16 (x16 mode) *2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors *1x PCIe 3.0 x16 (x8 mode) *AMD Athlon™ with Radeon™ Vega Graphics Processors *1x PCIe 3.0 x16 (x4 mode) *AMD B450 chipset *2x PCIe 2.0 x1 RAID řadič: 0, 1, 10 SATA: *6x SATA 6Gb/s ports M.2: *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: *zadní USB porty ( celkem 6 ) *2x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s) Interní porty: *1x CPU Fan connector(s) (1 x 4 -pin) *2x Chassis Fan connector(s) (2 x 4 -pin) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x SPI TPM header *1x COM port(s) connector(s) *6x SATA 6Gb/s connector(s) *1x S/PDIF out header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x Front panel audio connector(s) (AAFP) *1x System panel(s) *1x Clear CMOS jumper(s) *1x COM port header *1x Speaker connector *1x RGB Header Externí porty: *1x PS/2 keyboard/mouse combo port(s) *1x DVI-D *1x D-Sub *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (teal blue) (2 x Type-A) *4x USB 3.2 Gen 1 (blue) Type-A *3x Audio jack(s) *1x BIOS FlashBack™ Button(s) Obsah balení: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x M.2 Screw Package *1x Supporting DVD BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards/PRIME-B450M-A-II https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215

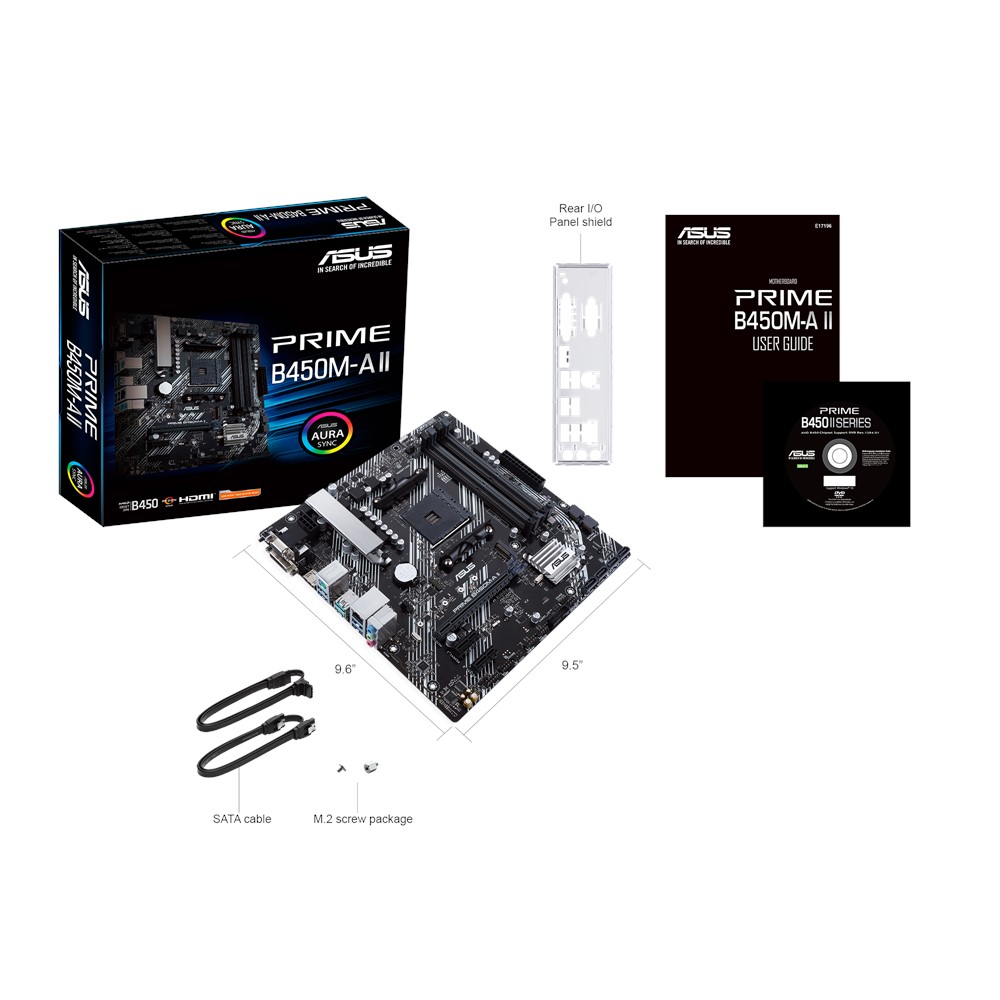

Příslušenství k tomuto produktu je…
